- This section compares the three Avatar 1S air unit kits in terms of design, camera configuration, features, and specifications.
- The standard Avatar 1S Kit includes a 14 mm Nano-size camera with M2 mounting holes on both sides.
- The Avatar 1S Lite Kit includes a lightweight whoop-style camera without mounting holes.
- The Avatar Nano V3 Kit adds a protective metal housing around the 1S air unit to improve durability and impact protection.

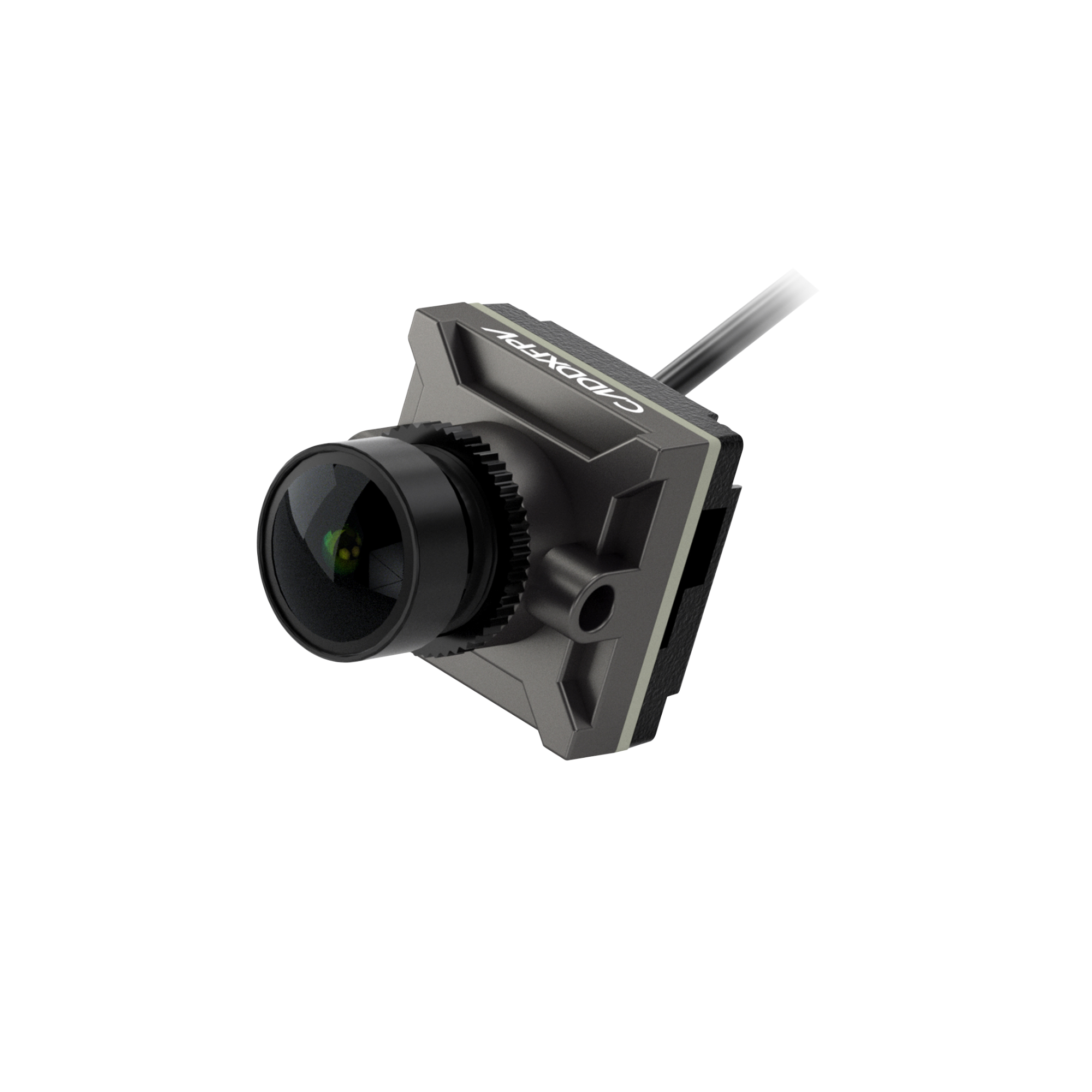

| Avatar Nano Camera |

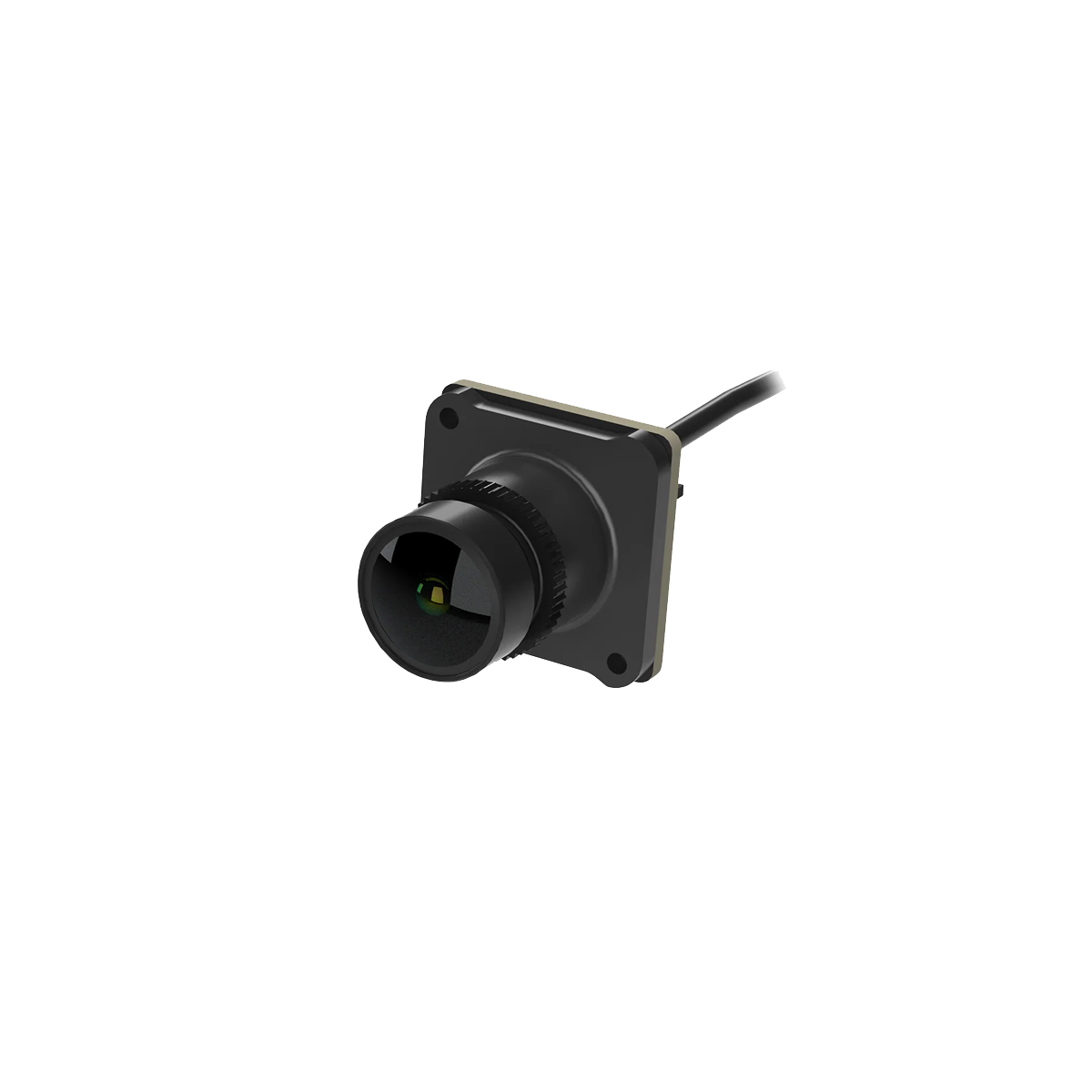

Avatar Nano Lite Camera |

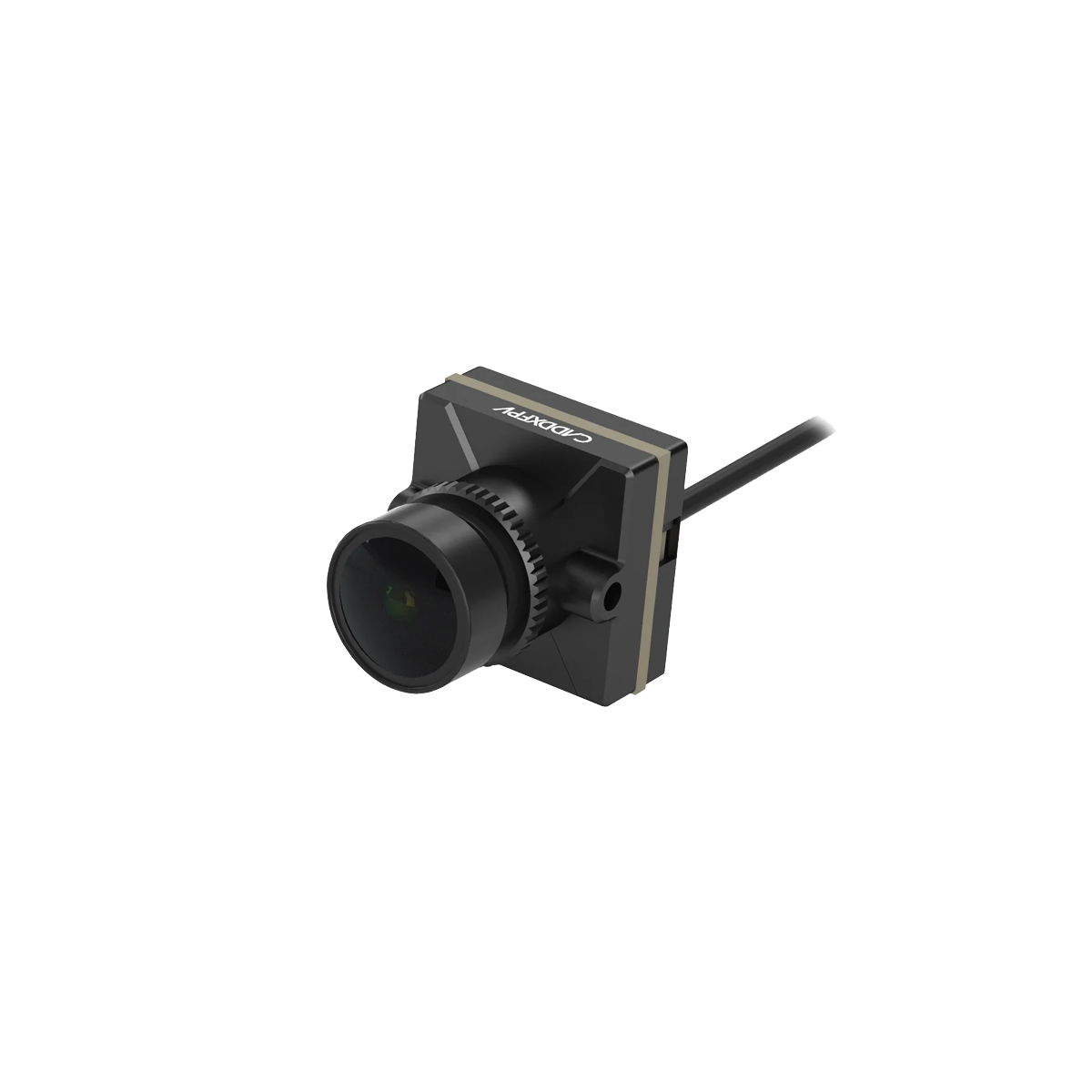

Avatar Nano V3 Camera |
 |
 |
 |
| With Mounting Holes |
Without Mounting Holes |
Native 4:3 Sensor |
- The three kits use air units with the same core functions. The latest versions support an input voltage of up to 3S, or 12.6 V, and RF output power of up to 500 mW.
- However, the included antennas are different. The standard Avatar 1S Kit includes an LHCP circularly polarized antenna, while the Avatar 1S Lite Kit uses a lightweight linearly polarized whip antenna.
- The lighter antenna may reduce the long-range performance of the Avatar 1S Lite Kit, but it provides sufficient performance for whoops, micro FPV drones, and similar lightweight platforms.
| Item |
Avatar 1S Kit |
Avatar 1S Lite Kit |
Avatar Nano V3 Kit |
|
 |
 |
 |
| Input Voltage |
3.1–5 V (V1 and V2); 3.1–13 V (V3) |
3.1–5 V (V1 and V2); 3.1–13 V (V3) |
3.1–13 V |
| Internal Storage |
8 GB / 32 GB |
8 GB / 32 GB |
8 GB / 32 GB |
| RF Output Power (EIRP) |
350 mW (V2, discontinued); 500 mW (V3) |
500 mW |
500 mW |
| Transmission Range |
3 km |
2 km |
3 km |
| Gyro Stabilization |
— |
— |
— |
| Night-Vision Performance |
— |
— |
— |
| Minimum Illumination |
0.001 lux |
0.001 lux |
0.001 lux |
| Recording |
1080p/60 fps |
1080p/60 fps |
1080p/60 fps |
| Air Unit Weight |
6.8 g |
6.8 g |
13.4 g |
| Air Unit Mounting Pattern |
25.5 × 25.5 mm |
25.5 × 25.5 mm |
25.5 × 25.5 mm / 20 × 20 mm, M3 |
| Camera Model |
Avatar Nano |
Avatar Nano Lite |
Avatar Nano V3 |
| Sensor Aspect Ratio |
16:9 / 4:3 |
16:9 / 4:3 |
Native 4:3 / 16:9 |
| Camera Weight |
3.5 g |
1.8 g |
3 g |
| Camera Dimensions |
14 × 14 × 17 mm |
14 × 14 × 16 mm |
14 × 14 × 16.8 mm |
| Field of View |
170° |
170° |
160° |
| Aperture |
F2.0 |
F2.0 |
F2.0 |
| Coaxial Cable Length |
5.5 cm |
5.5 cm |
9 cm |
Special thanks to Mads Tech for providing the photographs.
The Avatar 1S air unit has now been updated to the V3 hardware revision. Different hardware versions can be identified by the markings printed on the PCBA.
 |
 |

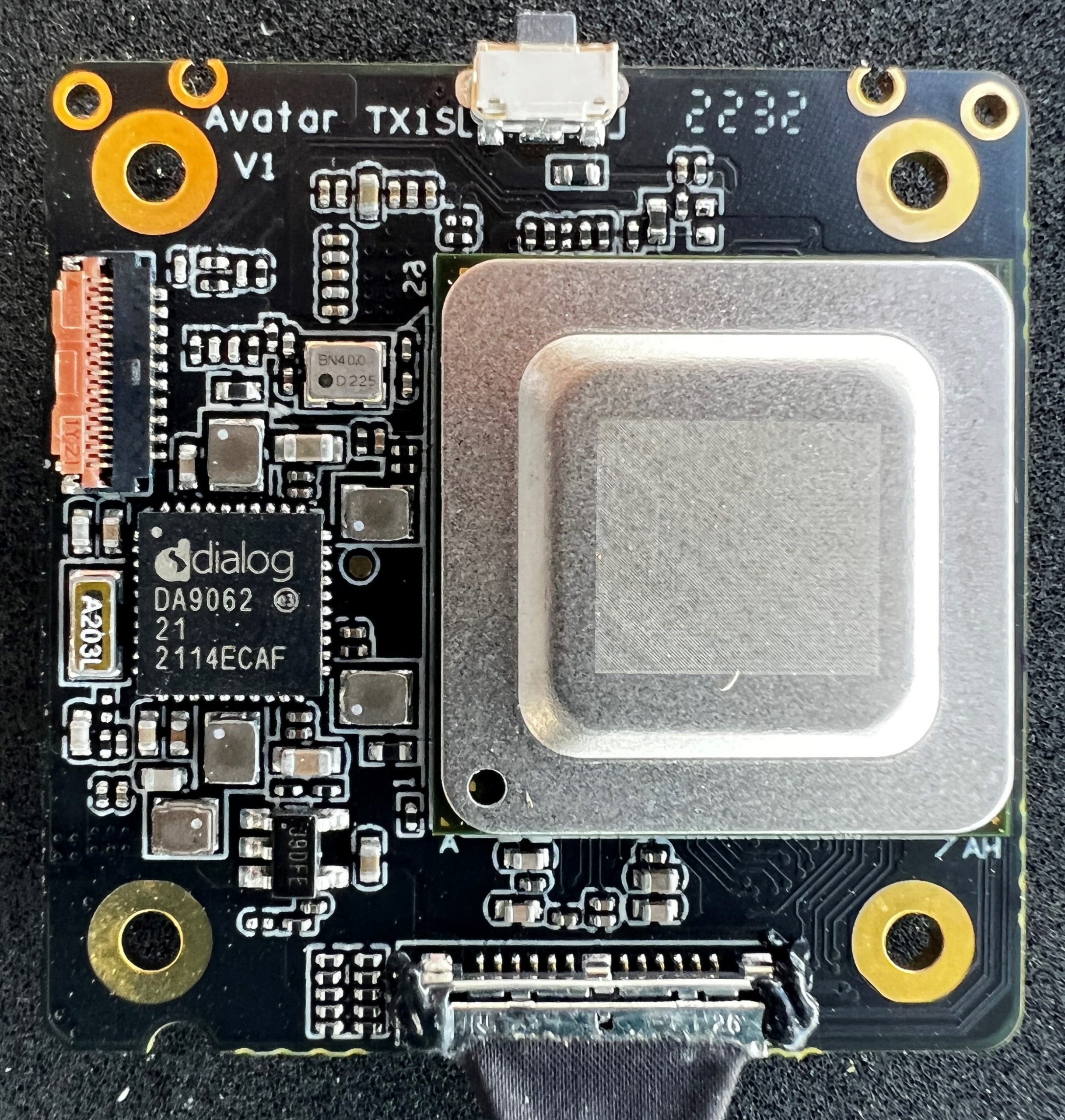

| Avatar 1S V1 Front |

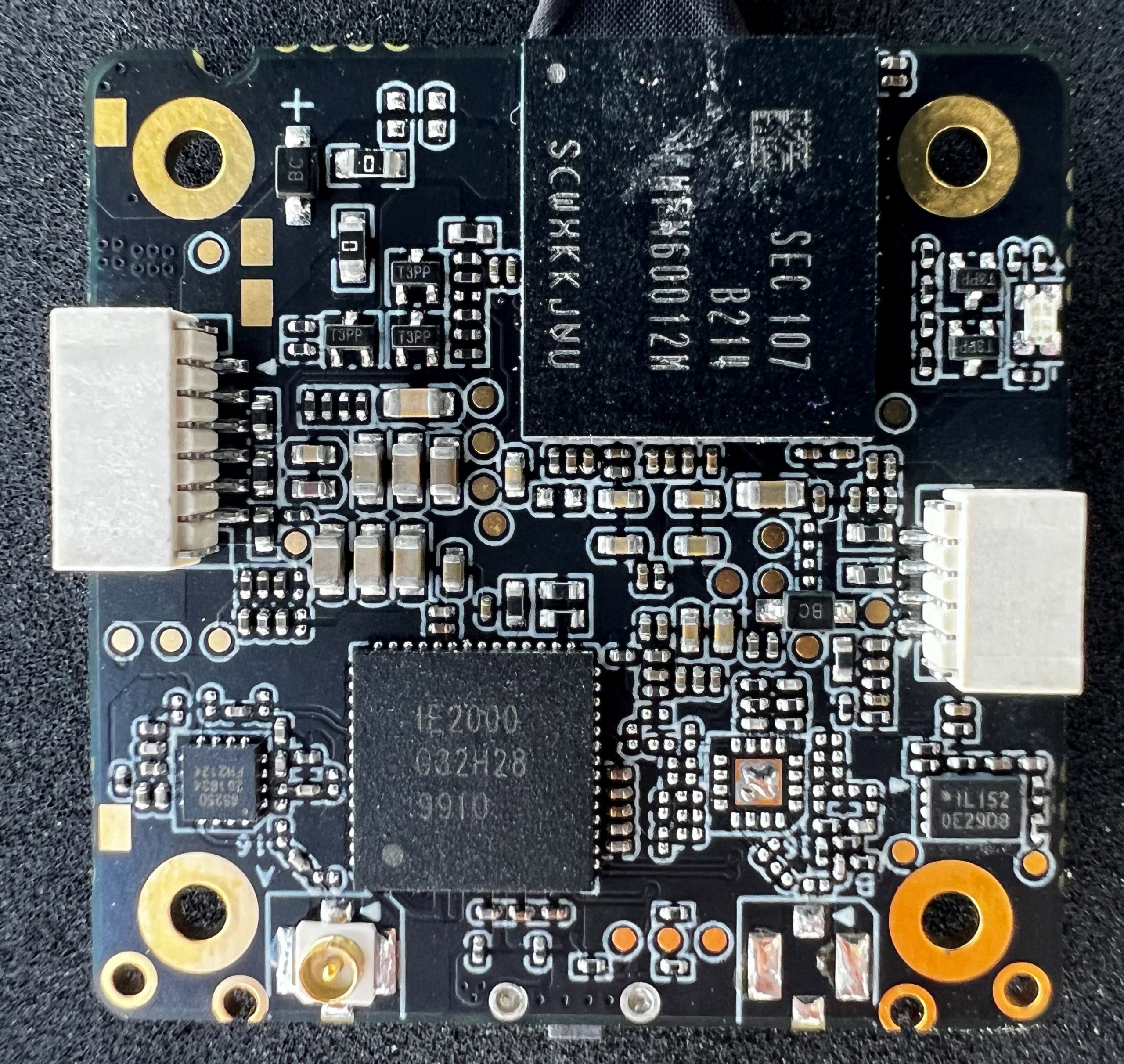

Avatar 1S V1 Rear |
 |
 |

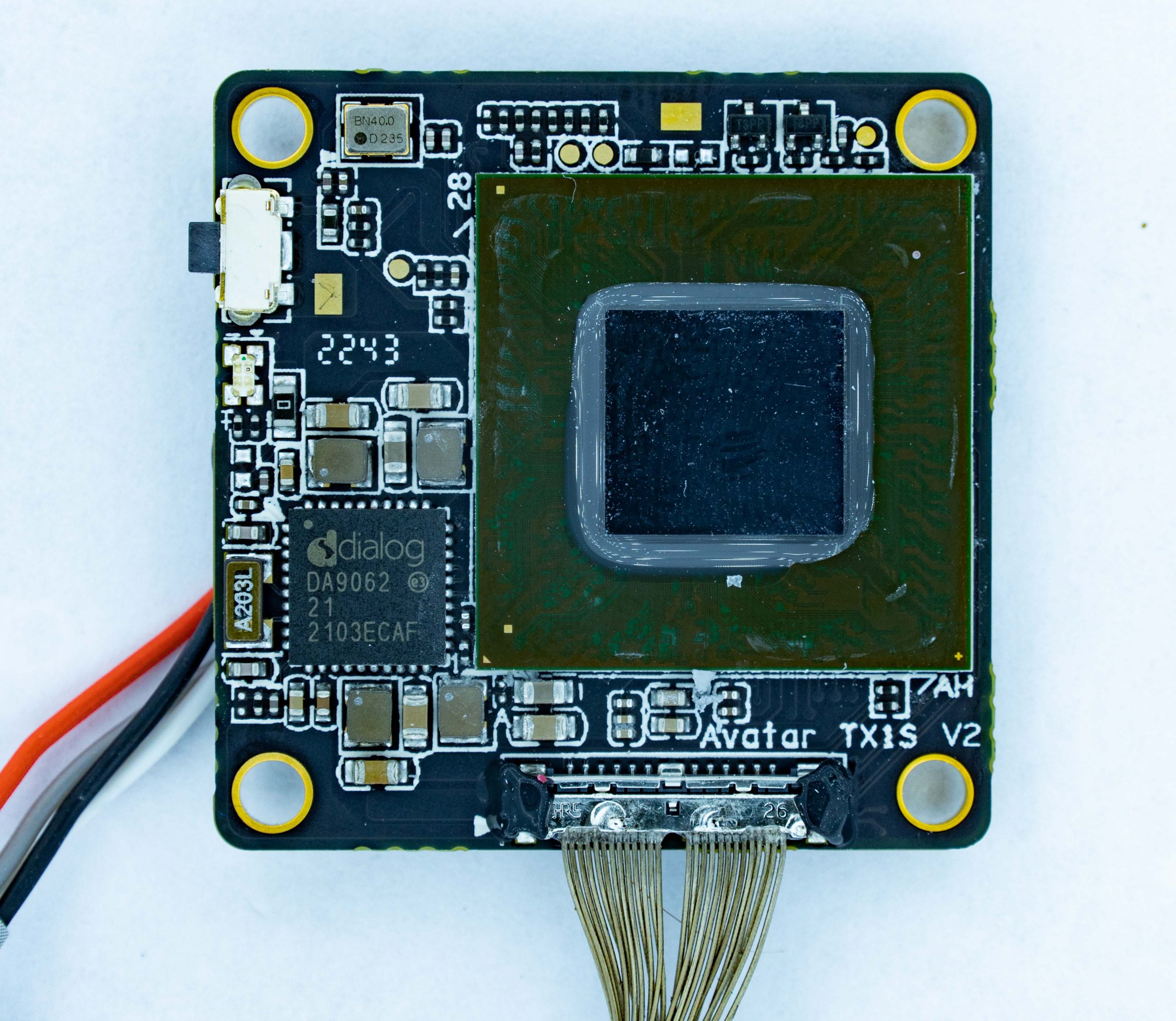

| Avatar 1S V2 Front |

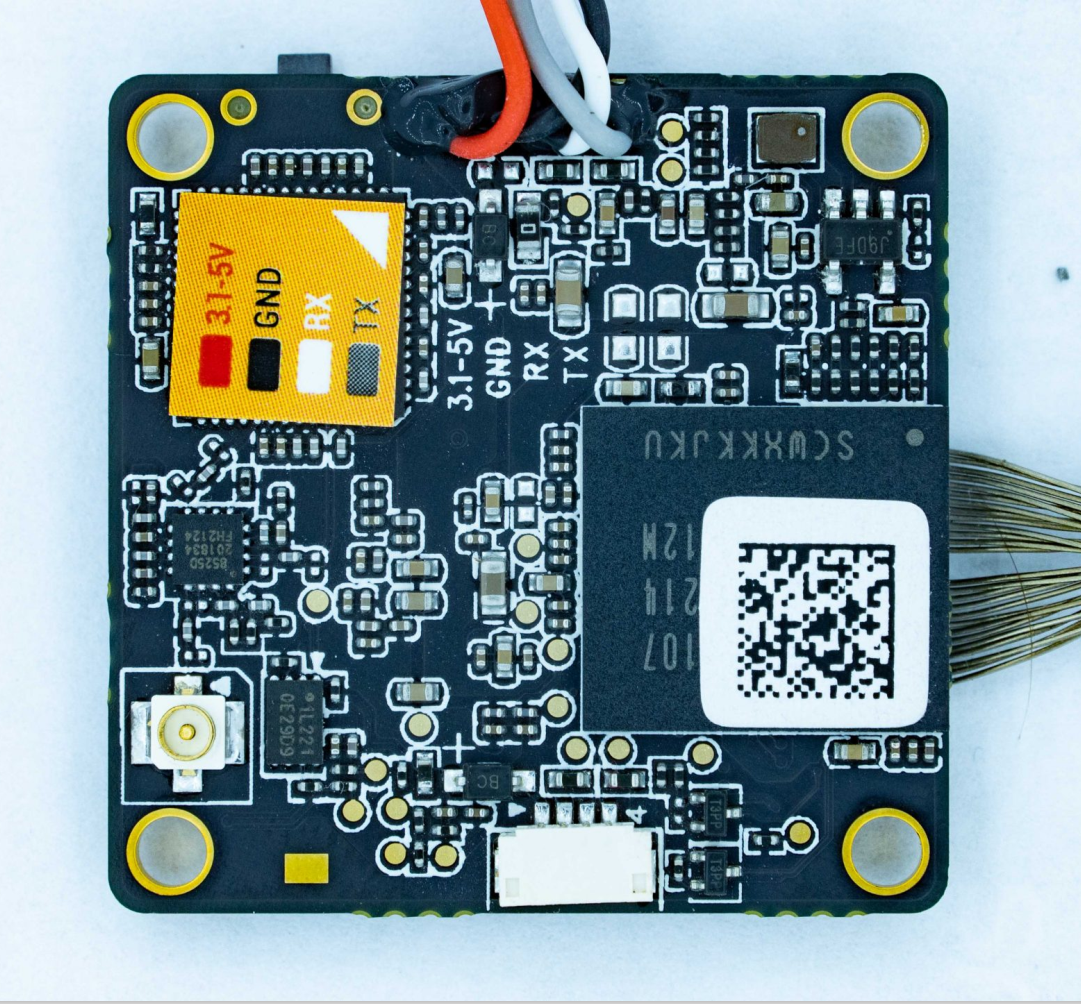

Avatar 1S V2 Rear |
 |
 |

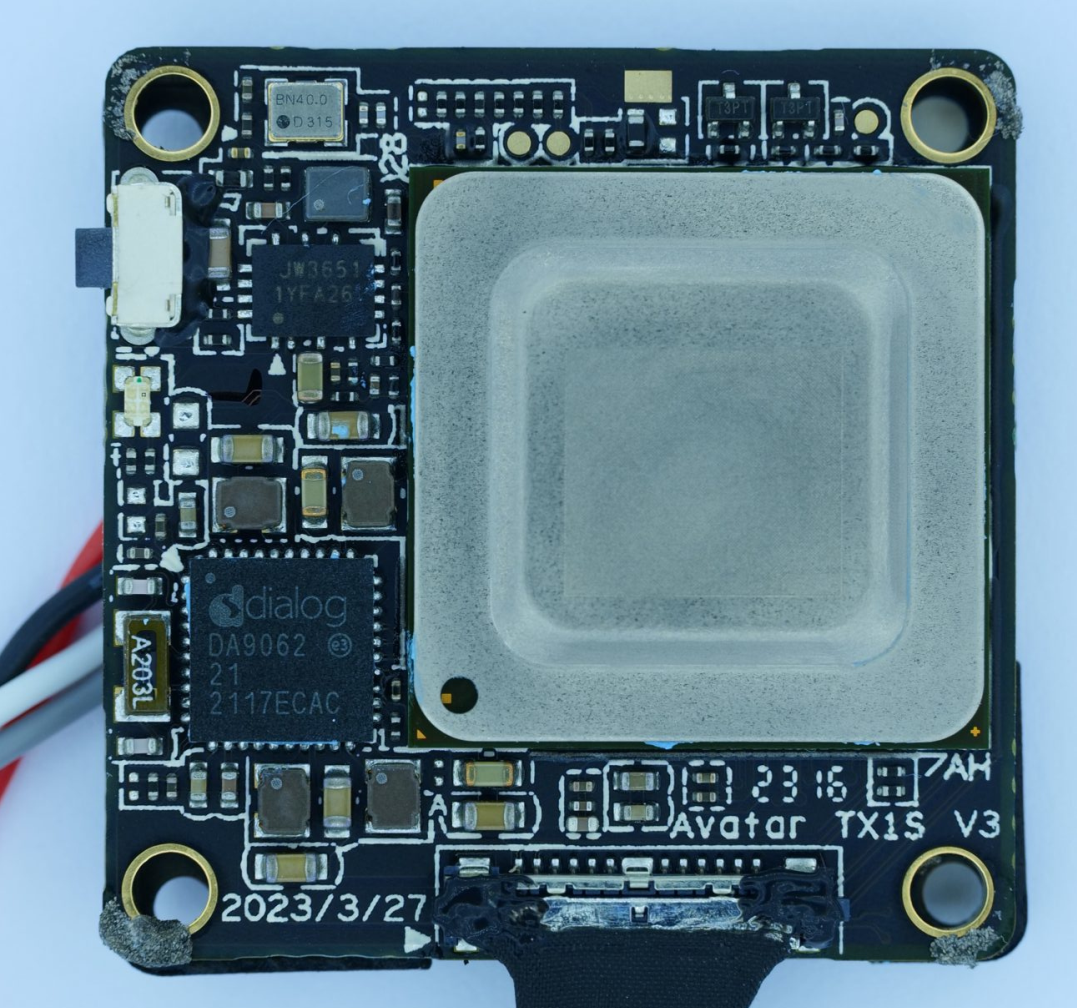

| Avatar 1S V3 Front |

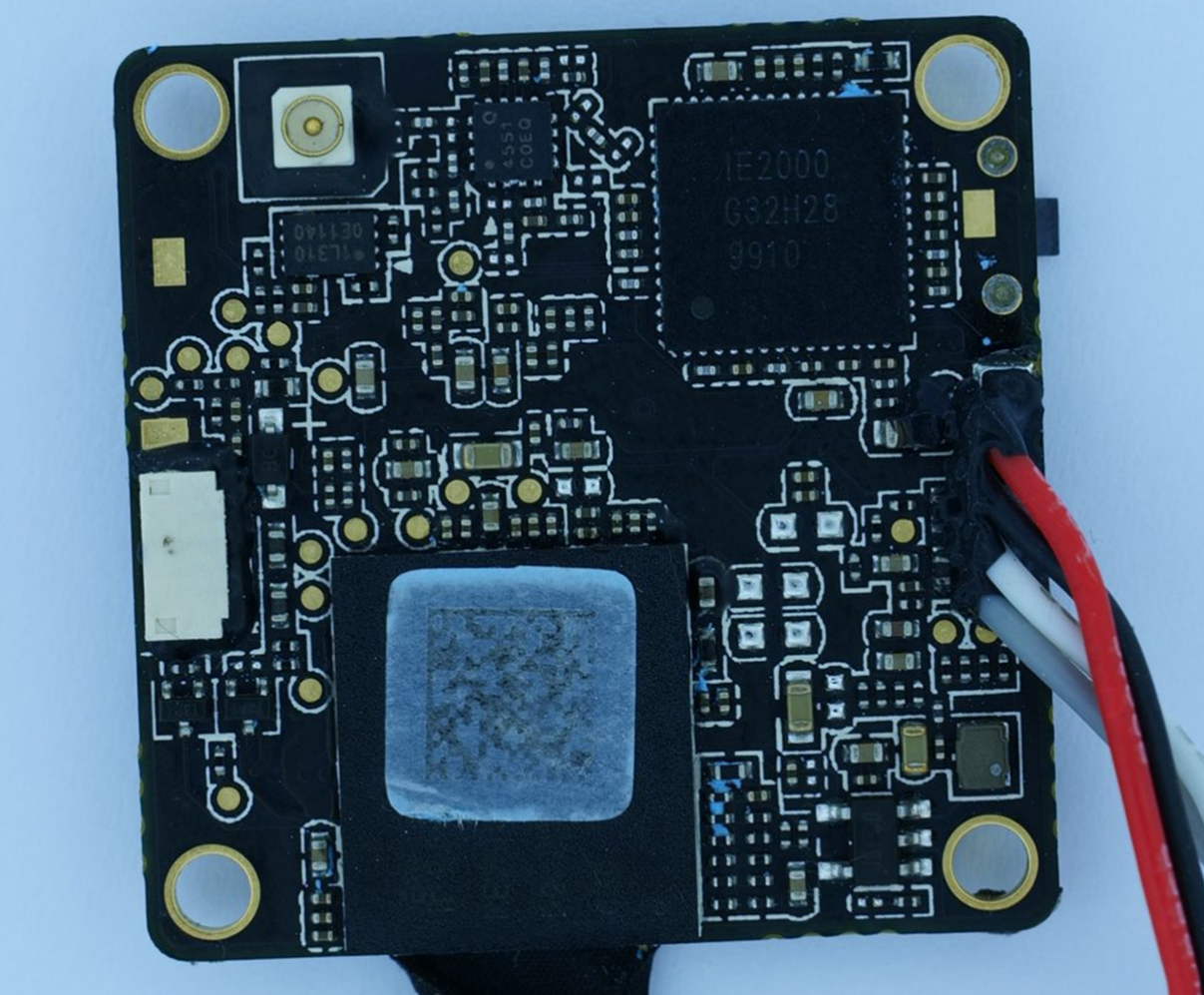

Avatar 1S V3 Rear |
