¶ When to Use
- When using the repeater for the first time, the receiver unit, repeater, and Air Unit must be bound together.
- After switching modes on the receiver unit, the devices must be bound again.
¶ What You Need
- One Avatar receiver unit
- One Avatar Air Unit
- One Avatar Repeater
- One small cooling fan
¶ Procedure
¶ Step 1: Update the Firmware
- Make sure all Avatar devices are running the latest firmware.
Download Avatar HD Firmware
¶ Step 2: Enable Repeater Mode
¶ Step 3: Bind the Devices
-
The repeater must be bound in the correct order. First bind the ground unit to the repeater, then bind the Air Unit to the repeater.
-

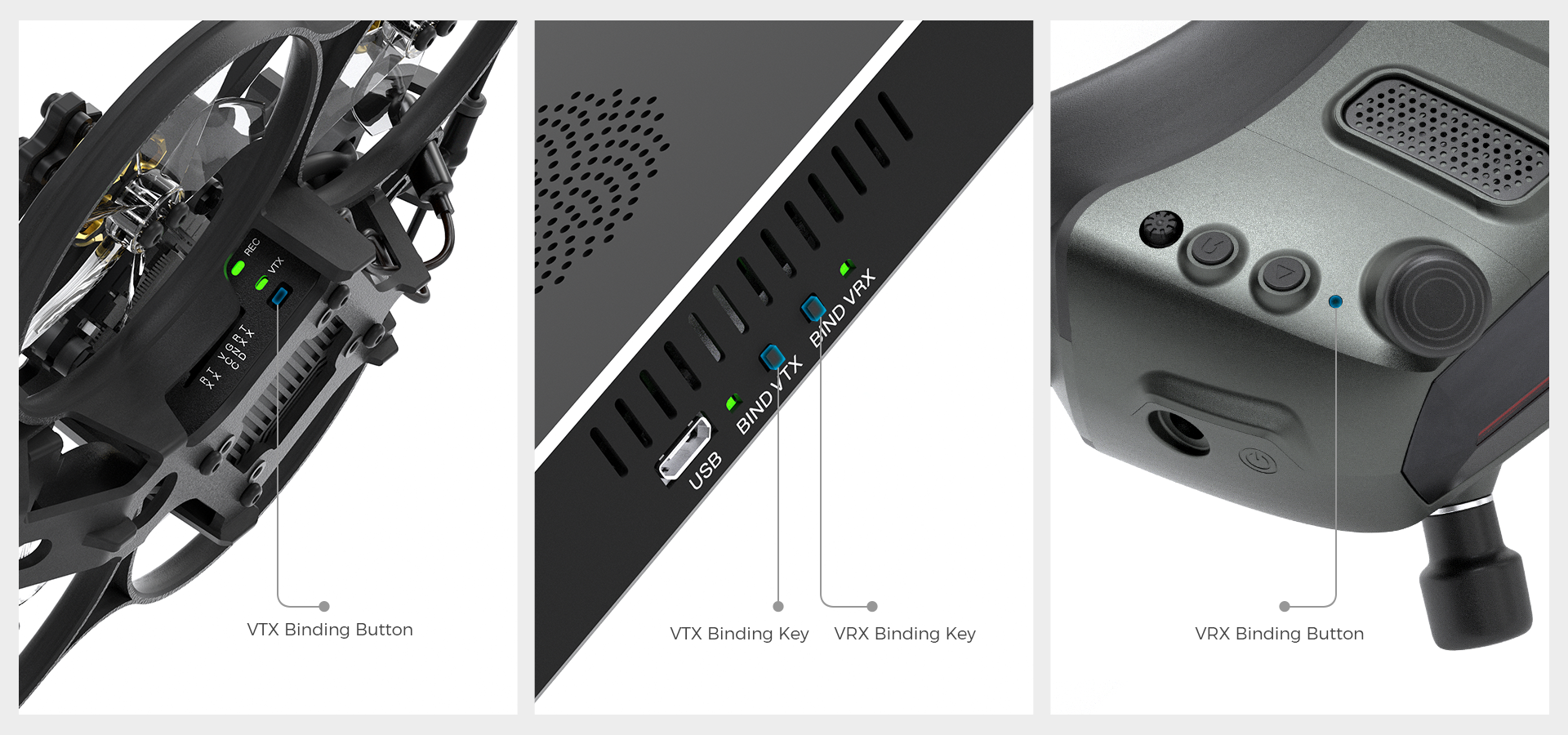

Short-press the BIND VRX button on the repeater. The repeater’s VRX LED will change from flashing green to solid red. Then short-press the Bind button on the ground unit.
- Short-press the BIND VTX button on the repeater. The repeater’s VTX LED will change from flashing green to solid red. Then short-press the Bind button on the Air Unit.
- If the ground unit displays the video feed normally, Binding is successful. If Binding fails, check whether all devices are running compatible firmware versions.
¶ Notes
The repeater must be bound in the correct order. First bind the ground unit to the repeater, then bind the Air Unit to the repeater.
